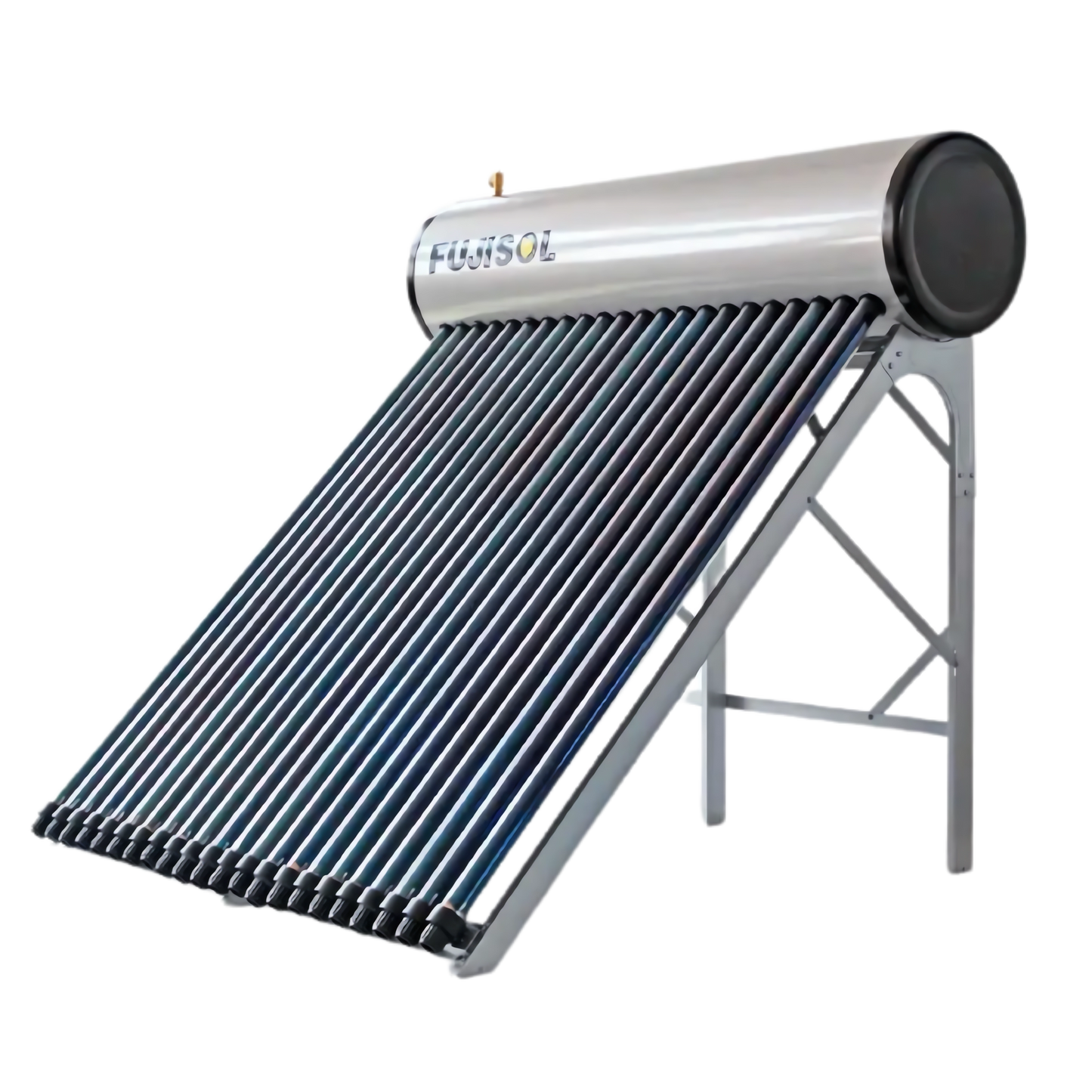

FUJI-HP H150 Thermosiphon

• Model: FUJISOL FUJI-HP H150

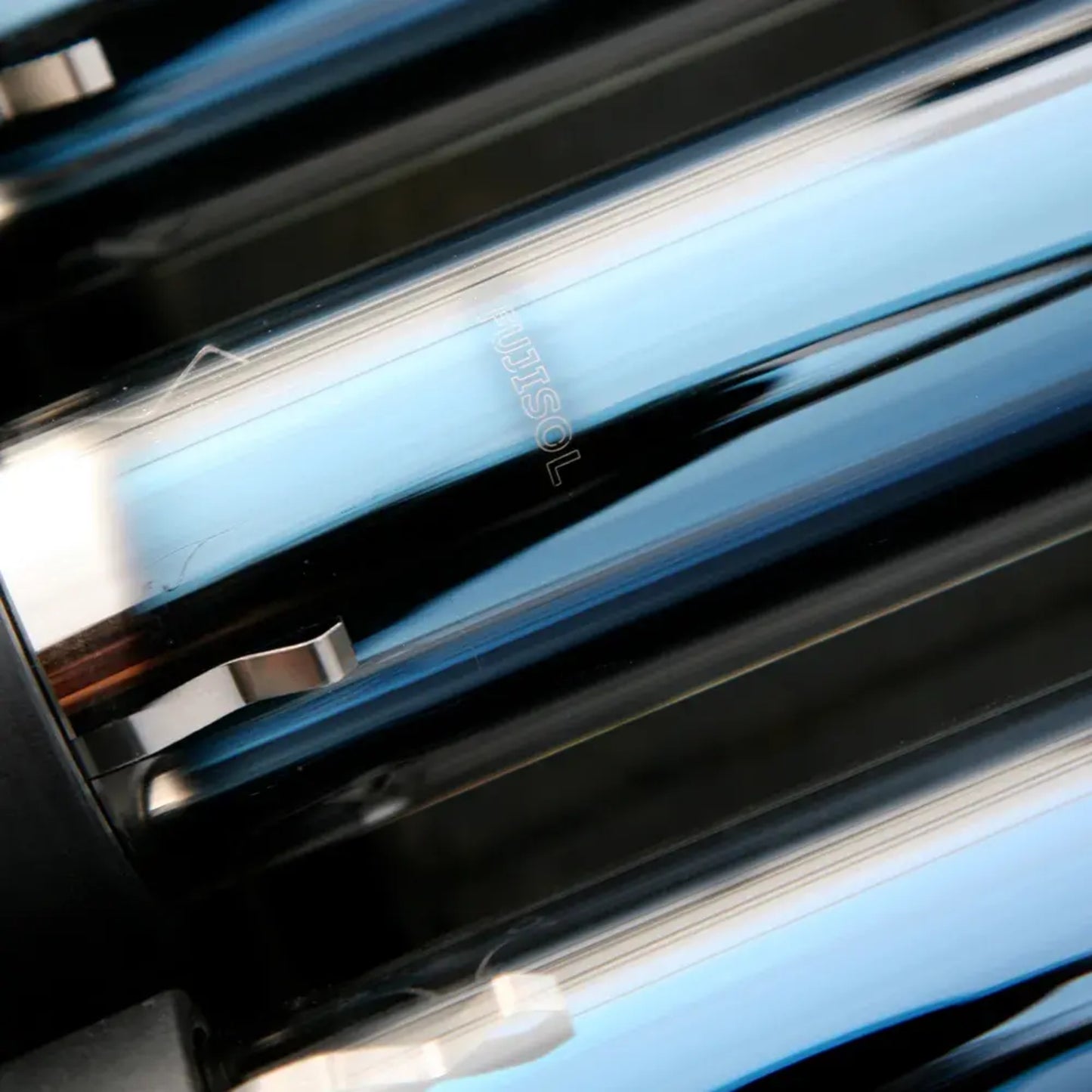

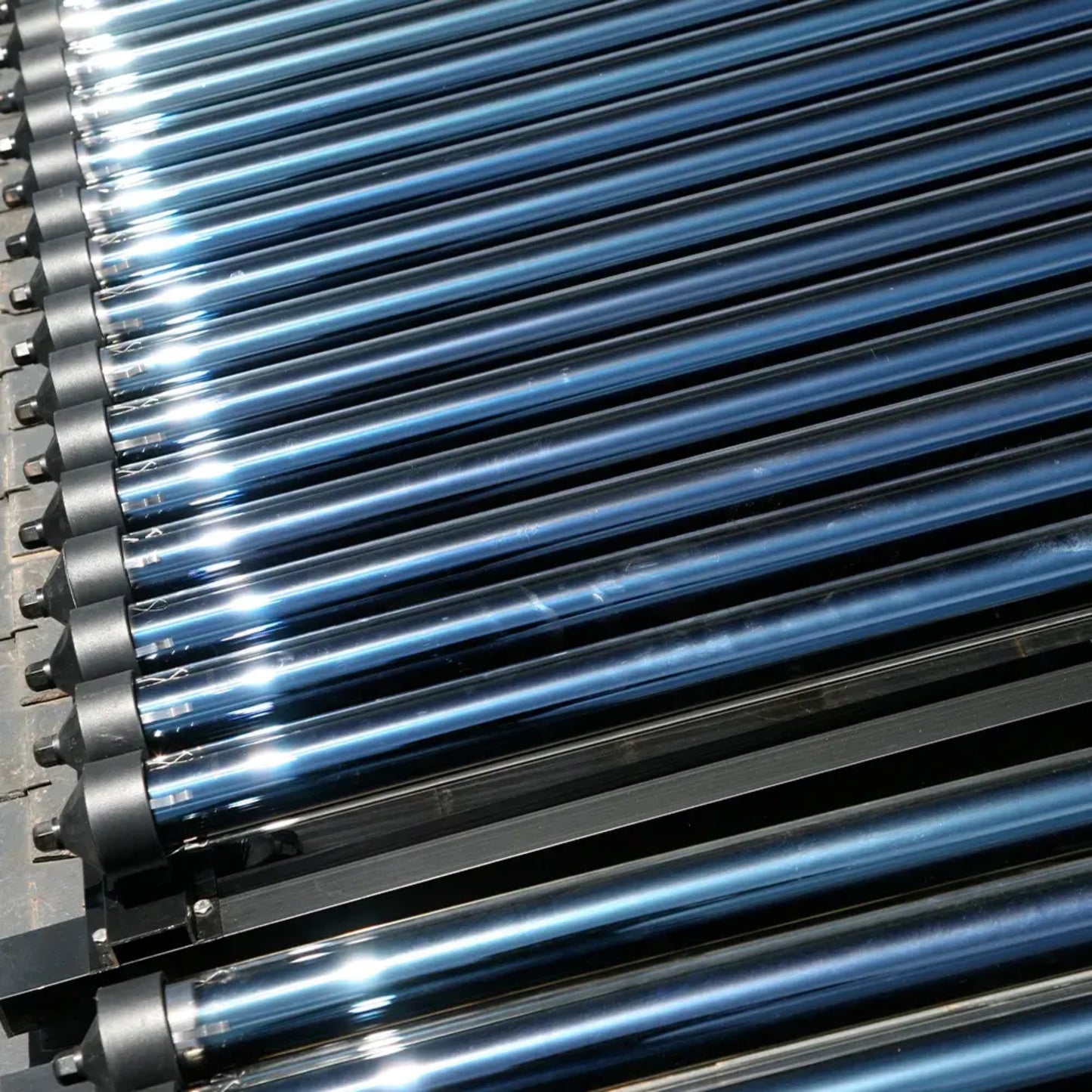

• Number of tubes: 16
• Tube dimensions: 5.8 x 180 cm
• Maximum tube temperature: 295°C
• Tube material: Borosilicate glass / 3 layers with double treatment
• Tank capacity: 150 L
• Tank material: SUS316 (internal) / 304 (external)
• Water heating: Heat-pipe exchangers
• Tank dimensions: 46 cm x 144 cm
• Maximum coil pressure: 10 bar
• Weight with water:
• Flat roof: 254 kg
• Sloped roof: 246 kg
• Heat exchanger: 8 mm copper heat pipe, 14 mm head
• Tank connection material: 316 stainless steel
• Gross dimensions:
• Flat roof: 144 cm (L) x 170 cm (H) x 155 cm (D) (see drawing)
• Sloped roof: 144 cm (L) x 207 cm (D) (see drawing)
• Support material: Aluminum / 304 stainless steel screws
• Inclination:
• Flat roof: 45°
• Sloped roof: 5°
• Connections:
• DHW inlet/outlet: 3/4"
• Tank ports: 1/2"
