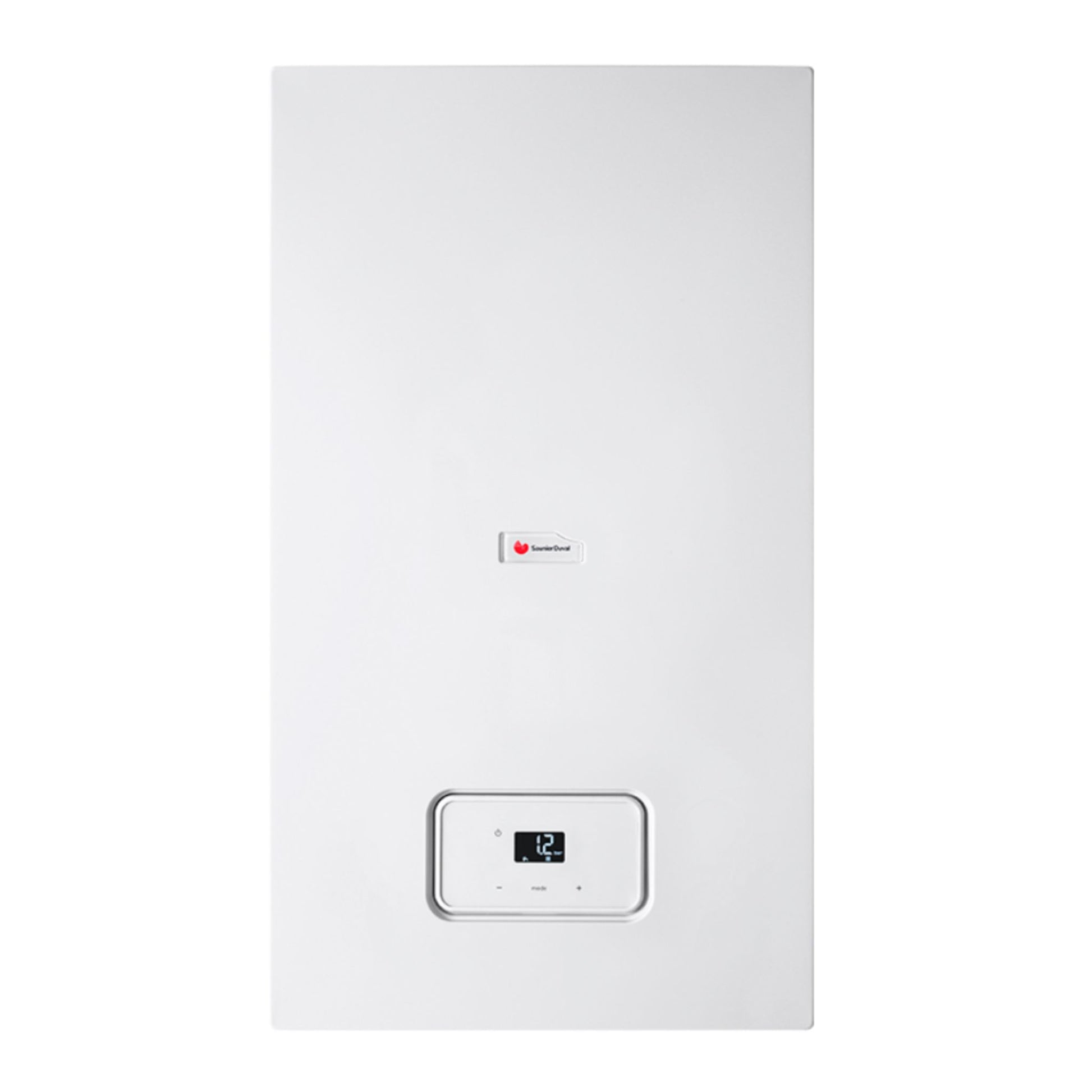

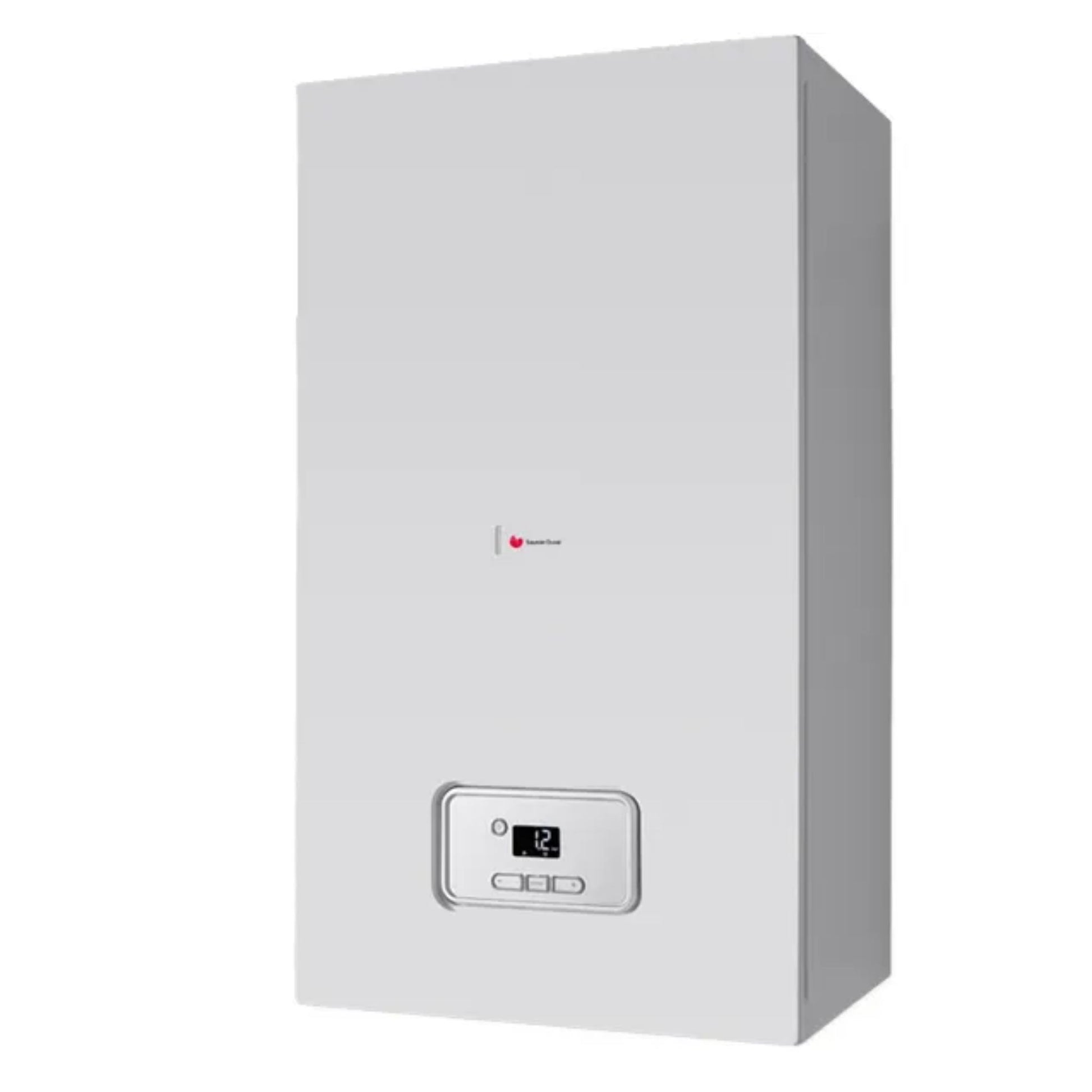

Saunier SEMIA CONDENS 30 GN Boiler

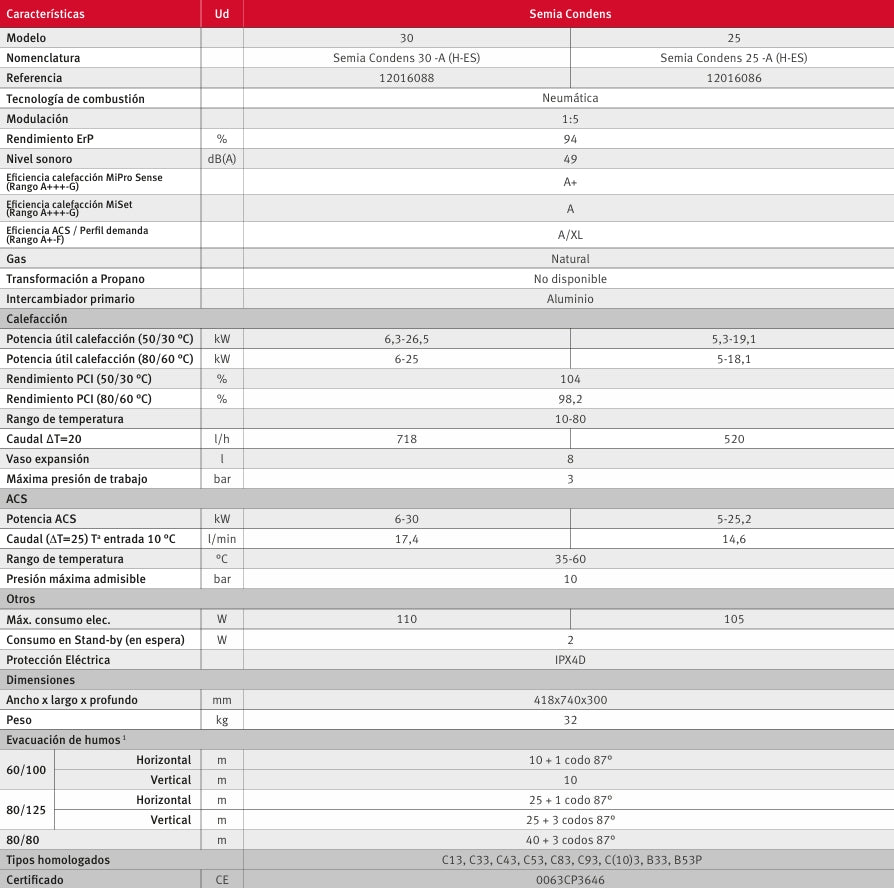

(See full details in the 4th image)

Model: Semia Condens 30-A (H-ES) & Semia Condens 25-A (H-ES)
Reference: 12016088 (30-A) / 12016086 (25-A)
Technology & Performance: Pneumatic
Modulation: 1:5
Efficiency: ErP 94%
Sound Level: 49 dB(A)
Heating Efficiency: A+
DHW Efficiency: A / XL
Gas Type: Natural
Propane Conversion: Not available
Primary Heat Exchanger: Aluminum

Heating:
Useful Power (50/30°C): 6.3-26.5 kW (30-A) / 5.3-19.1 kW (25-A)
Useful Power (80/60°C): 6-25 kW (30-A) / 5-18.1 kW (25-A)
Efficiency PCI (50/30°C): 104%
Efficiency PCI (80/60°C): 98.2%
Temperature Range: 10-80°C
Flow Rate (ΔT=20K): 718 l/h (30-A) / 520 l/h (25-A)
Expansion Vessel: 8 liters
Maximum Operating Pressure: 3 bar

Domestic Hot Water (DHW):
Power: 6-30 kW (30-A) / 5-25.2 kW (25-A)
Flow Rate (ΔT=25K, 10°C inlet): 17.4 l/min (30-A) / 14.6 l/min (25-A)
Temperature Range: 35-60°C
Maximum Allowable Pressure: 10 bar

Other Features:
Max Electrical Consumption: 110 W (30-A) / 105 W (25-A)
Standby Consumption: 2 W
Electrical Protection: IPX4D

Dimensions & Weight:
Dimensions (W x H x D): 418 x 740 x 300 mm
Weight: 32 kg

Flue Gas Exhaust:
60/100 mm Horizontal: 10 m + 1 elbow (87°)
60/100 mm Vertical: 10 m
80/125 mm Horizontal: 25 m + 1 elbow (87°)
80/125 mm Vertical: 25 m + 3 elbows (87°)
80/80 mm: 40 m + 3 elbows (87°)

Certification:
Approved Types: C13, C33, C43, C53, C83, C93, (C10)3, B33, B53P
Certification: CE 0063P3646
